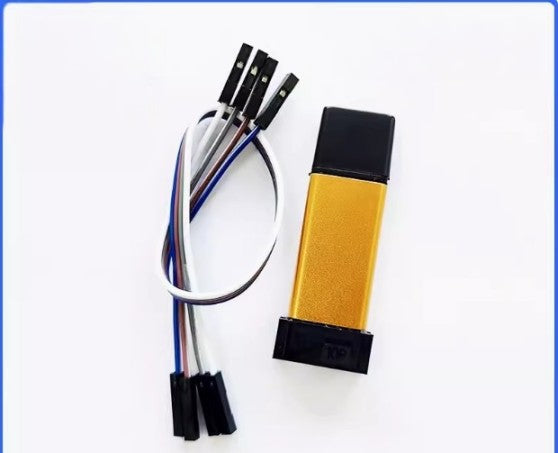

Eight highlights of XTW LINK ST V2:
1. Use aluminum alloy U disk shell to install the internal motherboard, which is easy to carry, safe and reliable!
2. The interface definition is directly marked on the shell, which is clear at a glance, convenient and practical!
3. 5V and 3.3V are provided to the outside at the same time, which is convenient for you to connect 5V and 3.3V target boards
4. The shell characters are laser engraved and will not fall off! Permanently clear and clear!
5. The internal motherboard has a 500MA self-recovery fuse to completely protect your expensive computer motherboard!
6. The red and blue dual-color LED indicator light allows you to observe the working status of ST-LINK V2 at any time!
7. 4 DuPont cables are delivered, so you can easily deal with different target board line sequences!
8. The outer packaging uses anti-static bags and is sealed by an automatic sealing machine. It is safe and reliable, not afraid of static electricity or water ingress!
Functions and features:
1. Support full series STM32 SWD interface debugging, 4-wire interface is simple (including power supply), fast and stable; interface definition is directly marked on the shell! No need to read the manual!
2. Support full series STM8 SWIM download debugging (common development environments such as IAR, STVD, etc. are supported); supported software versions are as follows:
① XTW LINK ST Utility 2.0 and above ② STVD 4.2.1 and above
③ STVP 3.2.3 and above ④ IAR EWARM V6.20 and above
⑤ IAR EWSTM8 V1.30 and above ⑥ KEIL RVMDK V4.21 and above
3. Support automatic firmware upgrade, the firmware has been upgraded to the latest V2.J17.S4 when leaving the factory;
4. Add 5V power output, output I/O ports are protected, and there is no need to worry about damage to LINK ST V2 caused by operating errors!
5. The interface uses a pure copper gold-plated 2.54 pitch simple horn socket, equipped with a 20CM DuPont line, which can cope with different target board line sequences and flexible wiring;
6. The U disk aluminum alloy shell is used to protect the motherboard, which is easy to carry, not afraid of static electricity, and not afraid of falling and bumping.
If you want to know more about the product（details+price）, please send an email to sales@pcb-hero.com , and then we can talk in detail.
