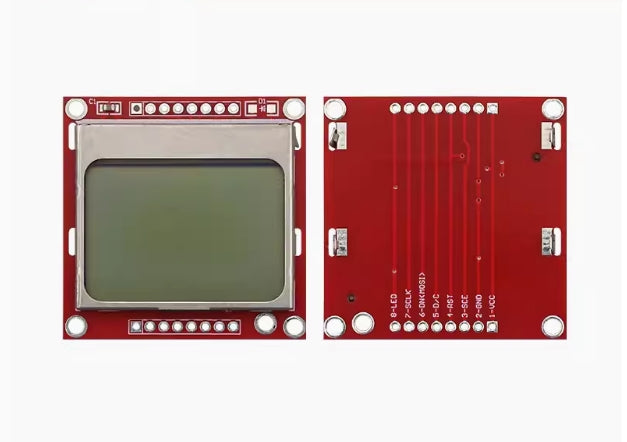

Nokia 5110 LCD Red Screen LCD Screen Module

1.The selected LCD has good color and quality
2. Onboard 4 LEDs, red backlight, uniform illumination

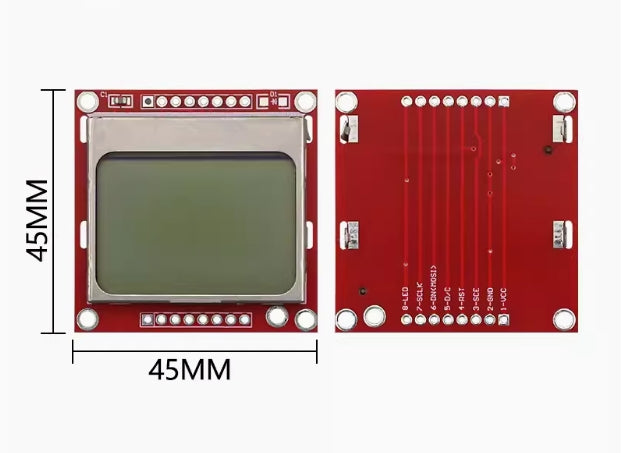

3. PCB size: 45 (mm) x 45 (mm)

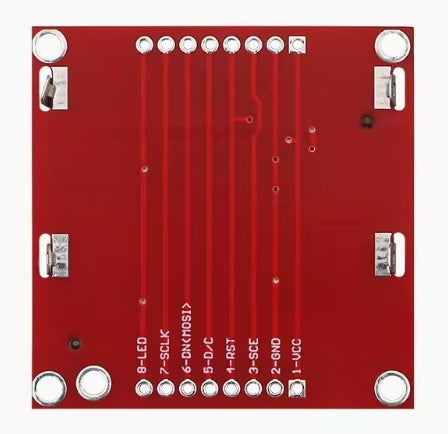

4. There are positioning holes at the four corners, and two rows of wiring ports are provided, arranged as follows:
VCC - Power Input (3.3V and 5V are both acceptable)
GND - Ground wire
SCE - Film Selection
RST - Reset
DC - Data/Instruction Selection
DN - Serial Data Cable
CLK - Serial Clock Line
LED - Backlight Control Terminal
5. Provide the following drivers:
NOKIA5110 FOR 51 (keil c)
NOKIA5110 FOR PIC (picc)
NOKIA5110 FOR AVR (gcc)
NOKIA5110 FOR STM32 (keil for arm)
NOKIA5110 FOR MSP430
NOKIA5110 FOR LPC2148
