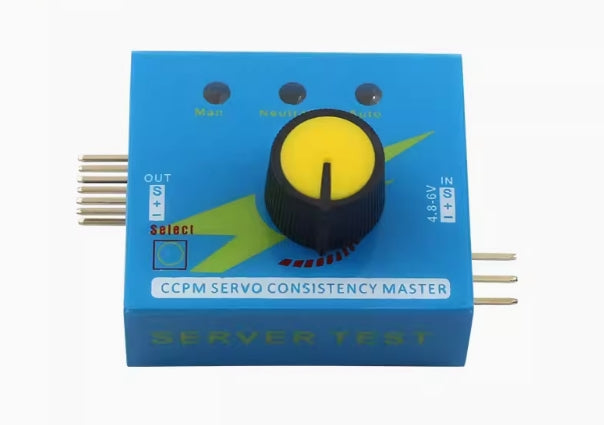

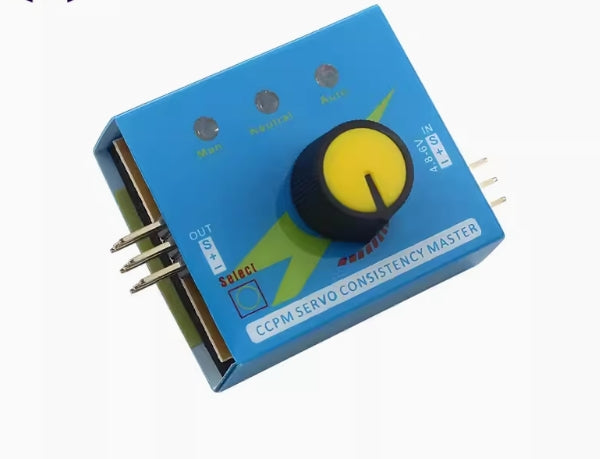

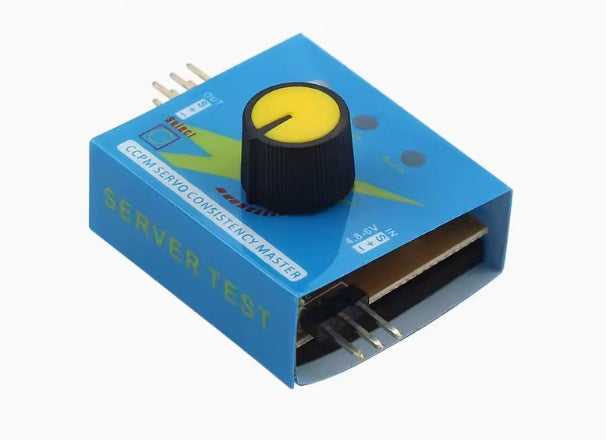

Simple servo tester / TITAN tester / tester / three-speed switch / with indicator light
Product specifications:
(1) Output: ≤15mA (5.0)
(2) Input: DC 4.2-6.0v
(3) Output signal: 1.5ms±0.5ms
(4) Size: 46*32*17MM
(5) Weight: 8g

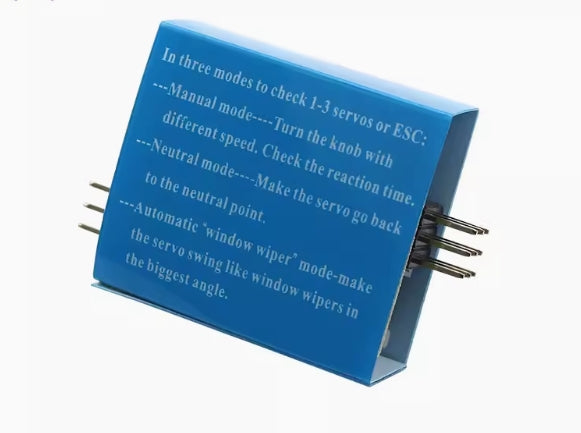

(6) Adjustment mode: manual, automatic, center position.
Features: It is very convenient to detect and set the virtual position, jitter and center position of the servo.
Can connect two sets of servos or ESCs; single-chip control, good stability and high precision. Turn the knob to detect the servo.
If you connect an electronic speed regulator (brushless or brushless), you can get rid of the remote control device for manual speed regulation. It is very practical for testing the performance of the speed regulator or motor, and you don't need to connect the remote control and the receiver. It is equivalent to the function of a "manual receiver". The knob simulates the transmitter's steering
