Rigid Flex PCB

Rigid Flex PCB

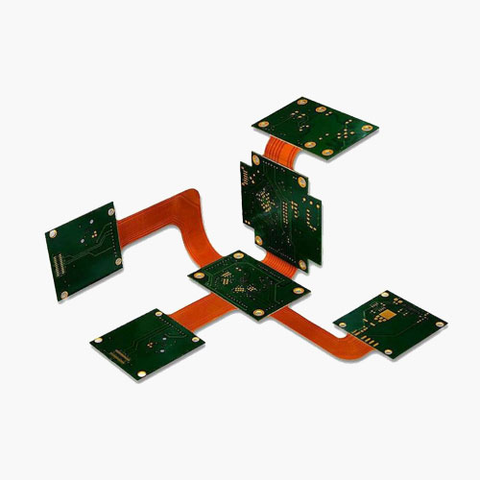

Rigid flex PCBs are printed circuit boards highlighted by both rigid and flexible areas that make them ideally suited for a wide range of applications. The typical rigid-flex PCB circuit includes two or more conductive layers that comprise either flexible or rigid insulation material between each one - the outer layers may have either exposed pads or covers. Conductors are found on the rigid layers, while plated through-holes are found in both the rigid and flexible layers.

The Advantages of Rigid Flex PCB Technology

While this type of flexible circuit may be more expensive to design and produce, it does offer a number of important advantages. For instance, the reduced size makes it easier to fit more components into a smaller space. This can actually help to lower overall system costs. Additionally, because they require the need for fewer interconnects and related parts and components, these flexible circuit board can also prove to be more reliable and require less maintenance in the long run.


As with all types of flexible circuit boards, the rigid flex printed circuit boards will perform well in even the harshest environments, especially those featuring extreme heat. A rigid flex board is also easy to test, making it well-suited for prototyping.

Rigid Flex PCB Solutions of the Highest Quality

Currently, PCBHERO has served companies in industries such as medical, telecommunications and manufacturing with our superior quality rigid flex PCB manufacturing services. We have an in-house quality control department to ensure your boards fabricated and assembled properly - we also guarantee the quality of all parts and components. Our engineers will even perform a Design for Manufacture (DFM) check at no additional charge.


Our experience and technical expertise enables us to develop custom rigid flex circuit boards for any specific applications. Here is our full feature rigid flex PCB manufacturing capabilities:



Feature Capability
Quality Grade Standard IPC 2
Number of Layers 2 - 24layers
Order Quantity 1pc - 10000+pcs
Build Time 2days - 5weeks
Material DuPont (PI25UM), FR4
Board Size Min 6mm x 6mm
Max 457mm x 610mm
Board Thickness 0.6mm - 5.0mm
Copper Weight (Finished) 0.5oz - 2.0oz
Min Tracing/Spacing 3mil/3mil
Solder Mask Sides As per the file
Solder Mask Color Green, White, Blue, Black, Red, Yellow
Silkscreen Sides As per the file
Silkscreen Color White, Black, Yellow
Surface Finish HASL - Hot air solder leveling
Lead - free HASL - RoHS
ENIG - RoHS
Min Annular Ring 4mil
Min Drilling Hole Diameter 8mil
Impedance control ±10%
Other Techniques HDI
Gold fingers
Stiffener (only for PI/FR4 substrate)
